Q6 high brightness 4K digital signage.
A 43–86 inch commercial display platform with optional 1000 / 1500 cd/m² brightness, 4K UHD resolution and a slim Android 11 media system.
43" – 86"five screen sizes with a shared hardware and software platform
Q6 platform
Built for brighter spaces.
High-brightness output, narrow equal bezels and a slim metal chassis make Q6 suitable for retail, transport, lobbies, exhibitions and high-ambient-light environments.
1000 / 1500cd/m² optional brightness
4K UHD3840 × 2160 at 60 Hz
50,000 hpanel service life
Android 11Wi-Fi 6 · Bluetooth 5.0
Model lineup
Choose the right screen area.
All sizes share the same panel technology, Android platform and connectivity. Physical dimensions, power and mounting vary by model.
Size comparison
Physical and electrical differences.
Use this table for preliminary planning. Always use the matching dimension PDF for final installation and packaging decisions.
| Specification | 43" | 55" | 65" | 75" | 86" |
|---|---|---|---|---|---|
| Product model | YMY-8343Q6 | YMY-8355Q6 | YMY-8365Q6 | YMY-8375Q6 | YMY-8386Q6 |
| Display area | 943 × 531.5 | 1209.6 × 680.4 | 1428.48 × 803.52 | 1649.66 × 927.936 | 1895.04 × 1065.96 |
| Bezel width | 6.9 mm | 5.9 mm | 6.9 mm | 6.9 mm | 6.9 mm |
| Chassis dimensions | 957.9 × 547.5 × 63.3 | 1226.1 × 699.5 × 63.3 | 1446.4 × 822.5 × 63.3 | 1668.2 × 948.1 × 63.3 | 1919.1 × 1089.8 × 62.3 |
| Package dimensions | 1040.5 × 652.5 × 150 | 1309 × 803.5 × 150 | 1550 × 945 × 215 | 1842 × 1160 × 210 | 1842 × 1160 × 210* |
| Net / gross weight | 10 / 12 kg | 15.2 / 19.2 kg | 19.7 / 27.7 kg | 28.5 / 39 kg | 37.5 / 49.5 kg |
| Rated power | ≤190 W | ≤235 W | ≤270 W | ≤365 W | ≤548 W |
| VESA mounting | 400 × 400 | 400 × 400 | 400 × 400 | 600 × 400 | 800 × 600 |
Dimensions are in millimetres. Display-area, chassis, package, weight and power values come from the supplied Q6 specification workbook. Pixel pitch is calculated from display area and 3840 × 2160 resolution because the source workbook repeats one value across all sizes. *The listed 86-inch carton length is shorter than the chassis and should be verified before use.
Common technical specification
Panel, Android and connectivity.
The values below are shared across the 43–86 inch Q6 series except where noted.
| LCD panel | BOE / CSOT A-si TFT LCD |
|---|---|
| Panel type | LCD Liquid Crystal Panel |
| Resolution / refresh | 3840 (RGB) × 2160, 60 Hz, UHD |
| Backlight / brightness | DLED; 1000 / 1500 cd/m² (optional, typical) |
| Contrast / colour | 4500:1 typical; 10-bit 1.07B; 6500 K |
| Colour gamut | sRGB 0.96; NTSC 0.82 |
| Pixel pitch (calculated) | 0.2458–0.4935 mm (varies by size) |
| Viewing angle / response | 178° / 178°; 6.5 ms (G-to-G typical) |
| Panel life | 50,000 hours |
| Processor / GPU | RK3566 quad-core up to 1.8 GHz; Mali-G52 |
| Video processing | 4K 60 fps H.265 / H.264 / VP9 |
| Memory / storage | 2 GB RAM; 32 GB ROM |
| Operating system | Android 11 |
| Network | 100 Mbps RJ45; 2.4/5 GHz Wi-Fi 6; Bluetooth 5.0 |
| Interfaces | 1 × USB 2.0; 1 × USB 2.0 OUT; 1 × RJ45 |
| Video / image formats | H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4; JPG, BMP, PNG |
| Remote / audio | Built-in infrared, <10 m; stereo 8 Ω 10 W × 2 |
| Input / standby power | AC 110–240 V, 50/60 Hz; ≤0.5 W standby |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +60°C |
| OSD language | Multilingual; default Chinese |
Reference views
All downloadsQ6 product gallery.
Front, back and three-view drawings for each size. Download the source PDFs for precise dimensions.

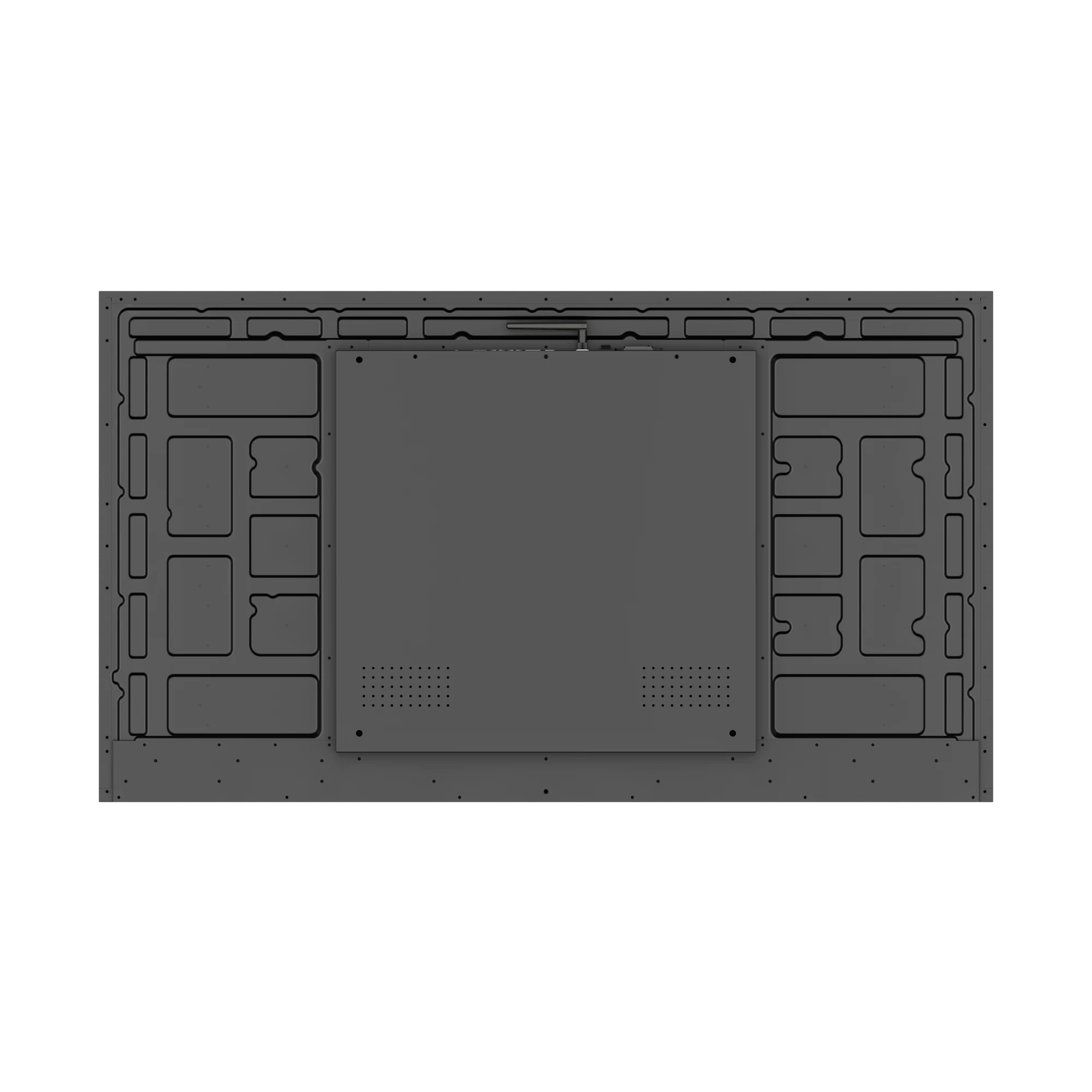

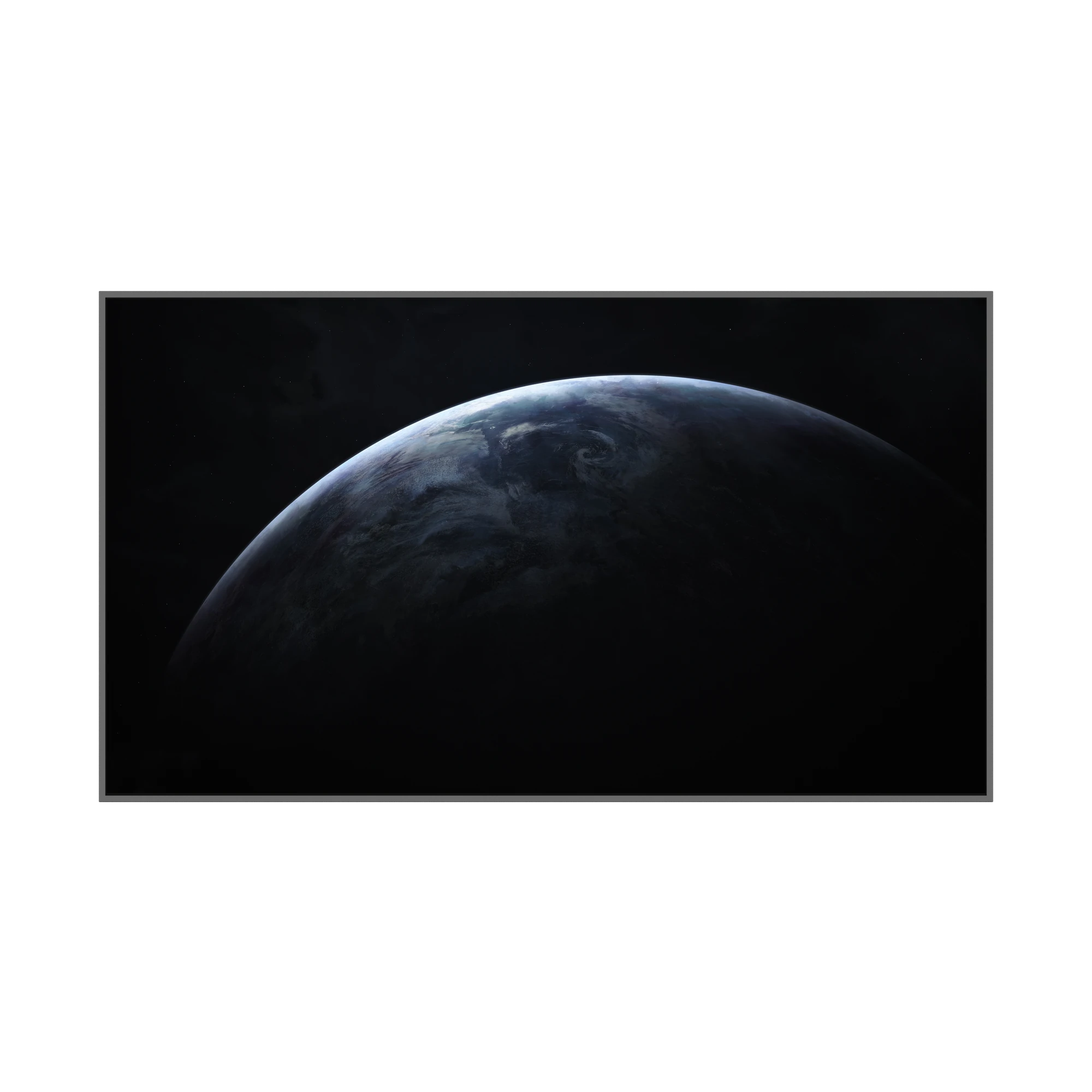

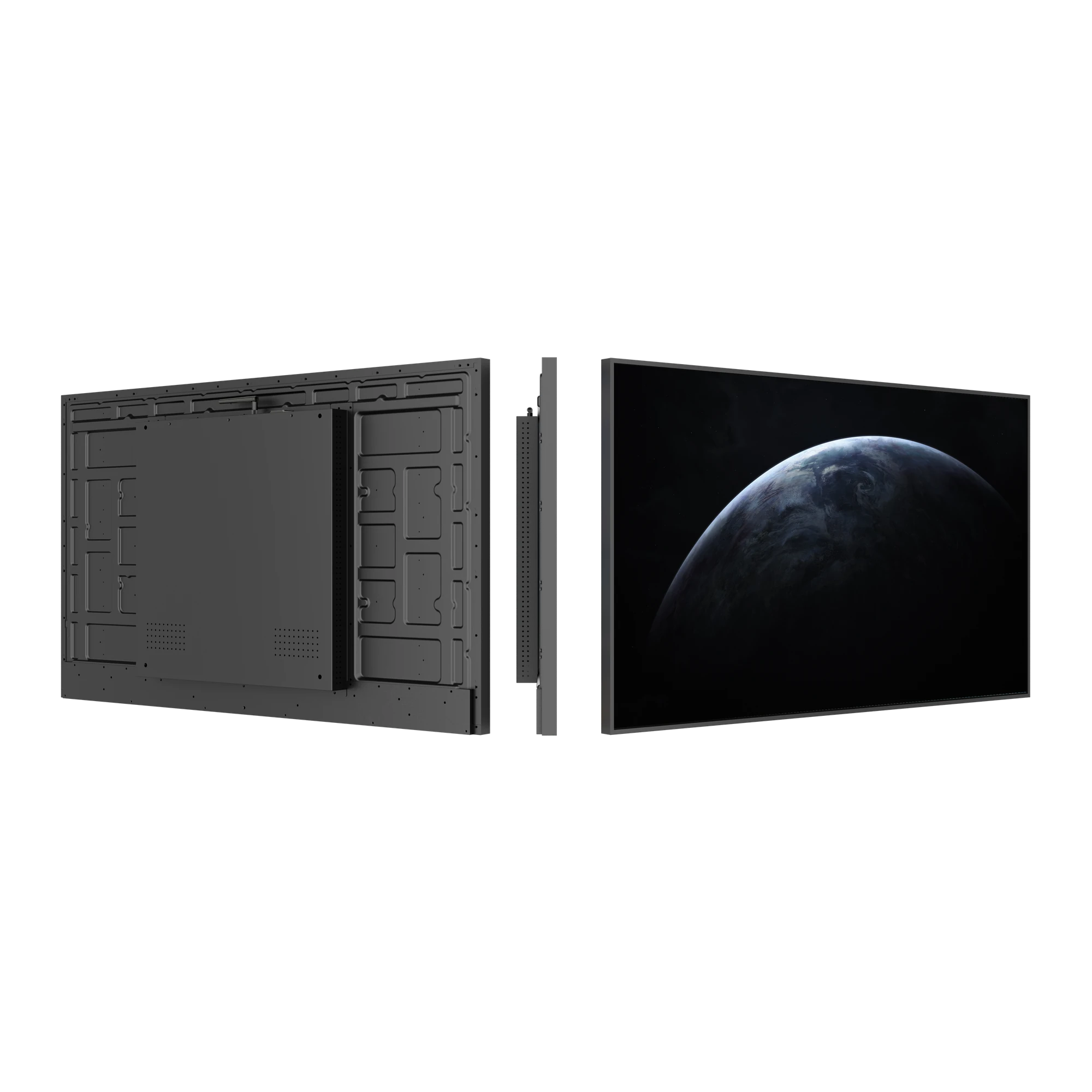

43-inch Q6

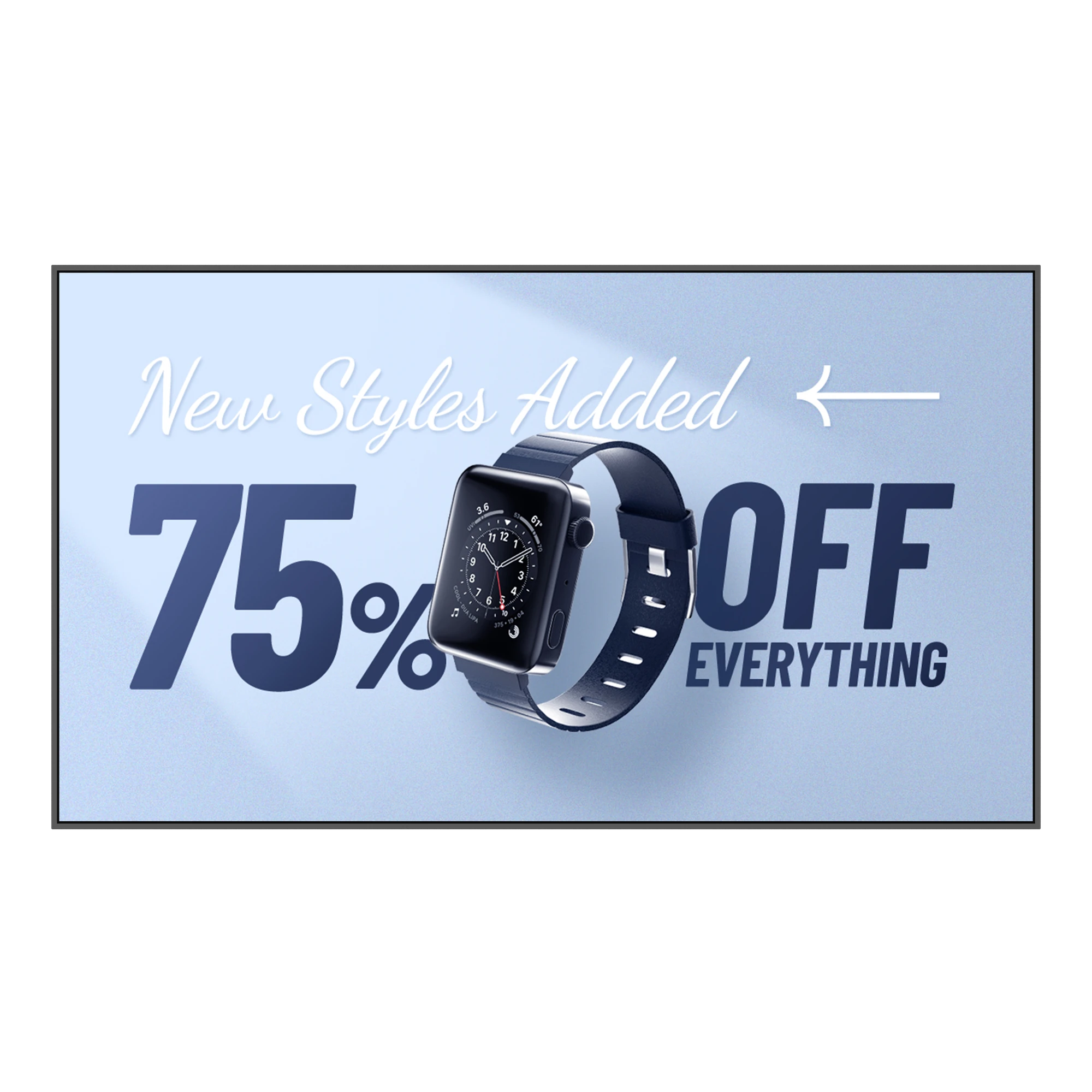

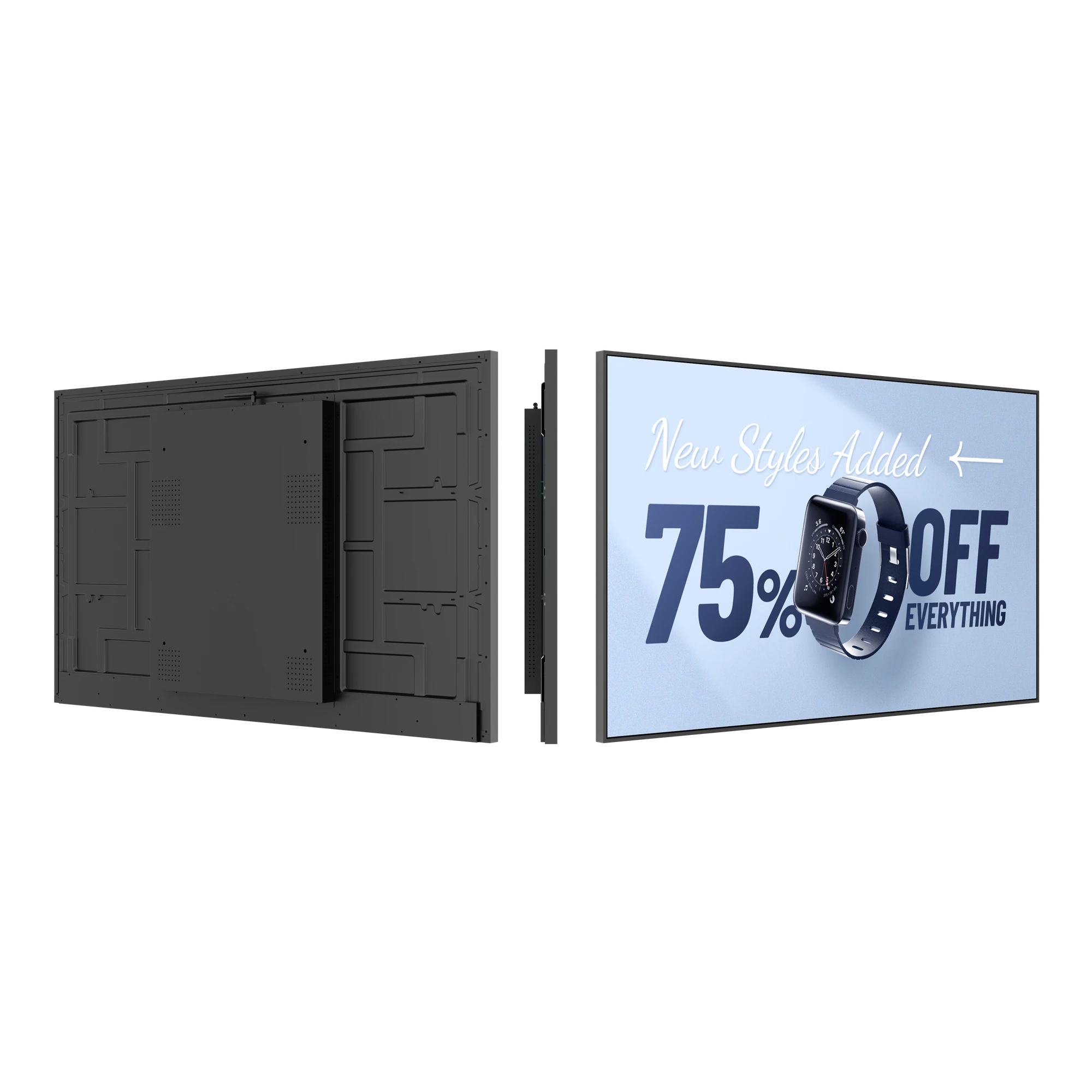

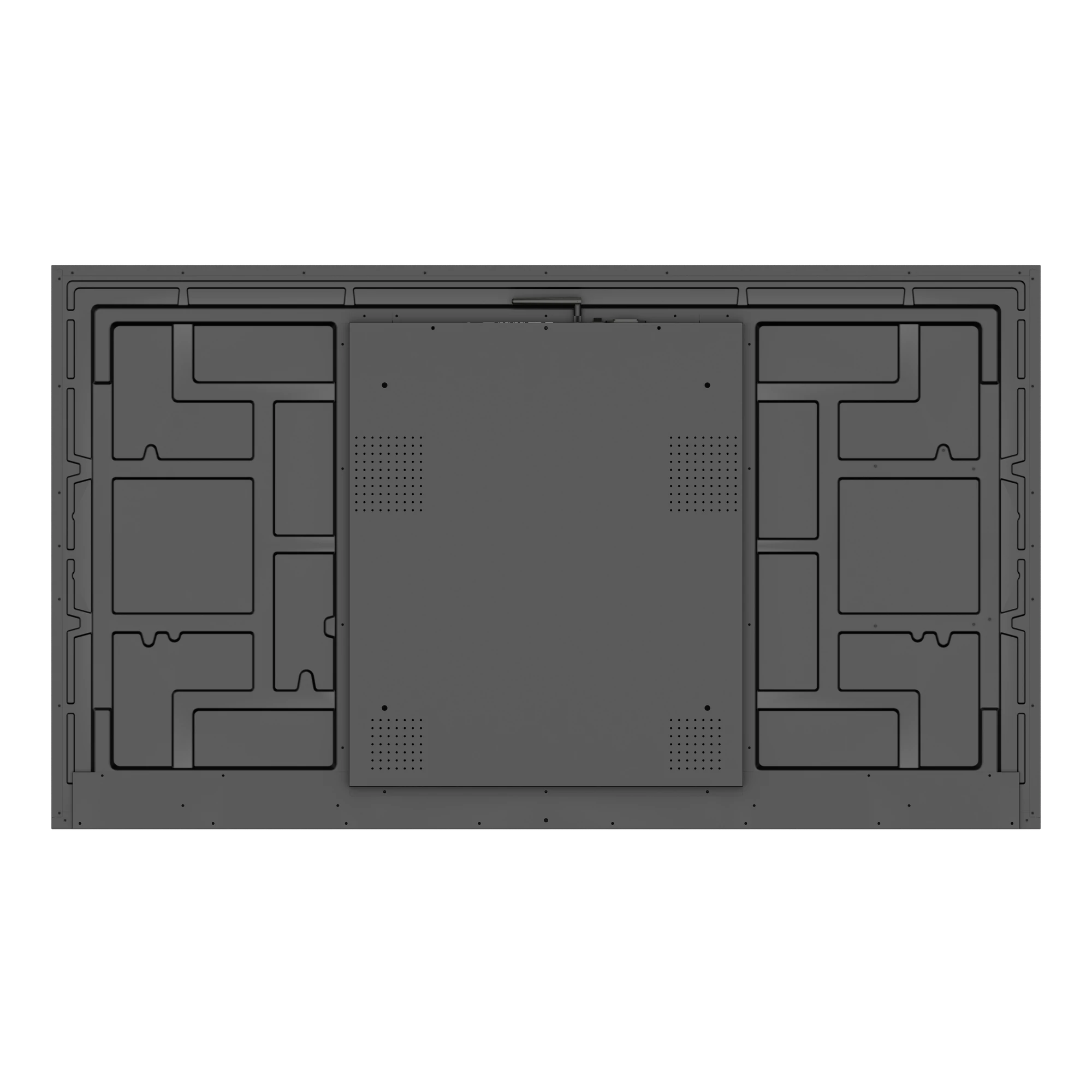

55-inch Q6

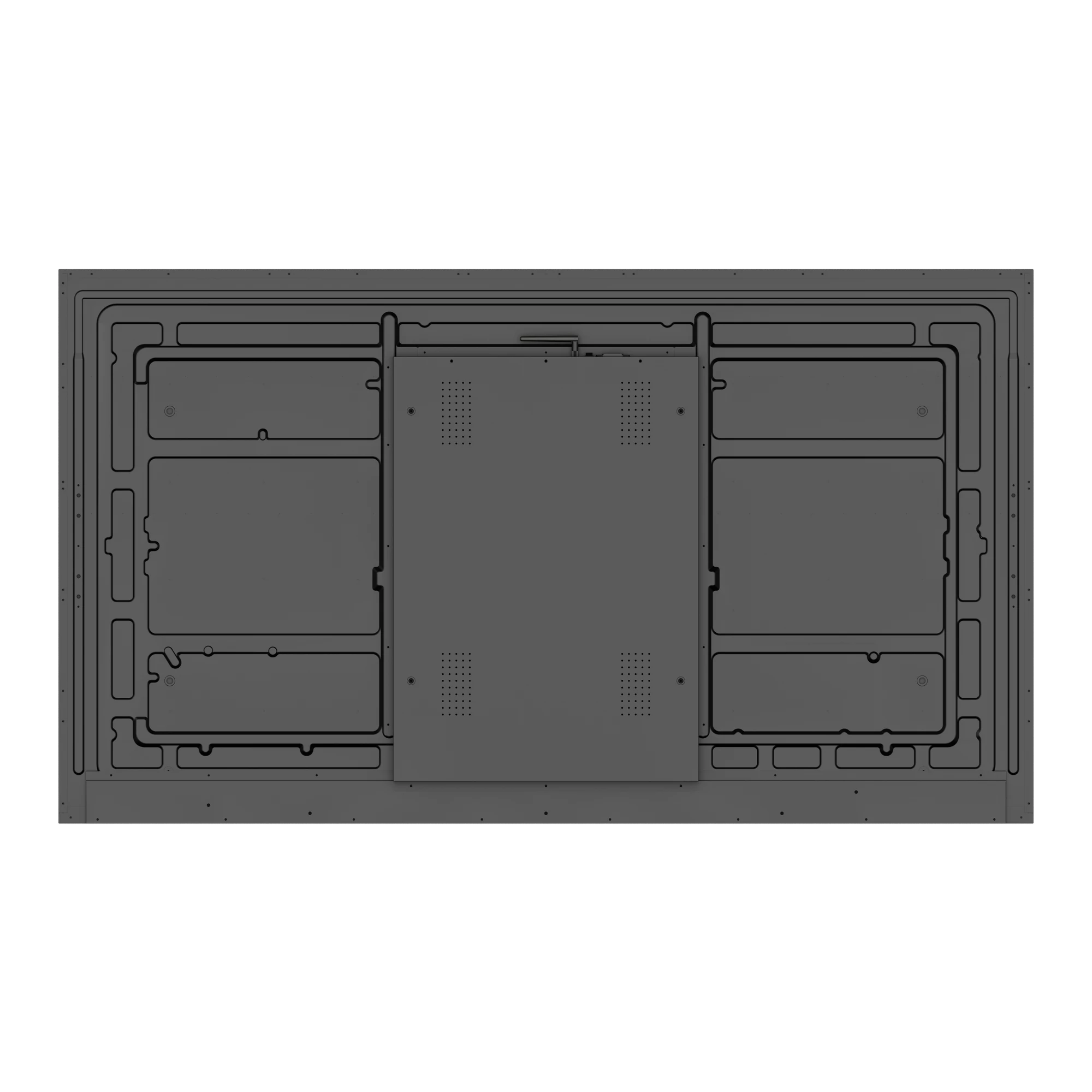

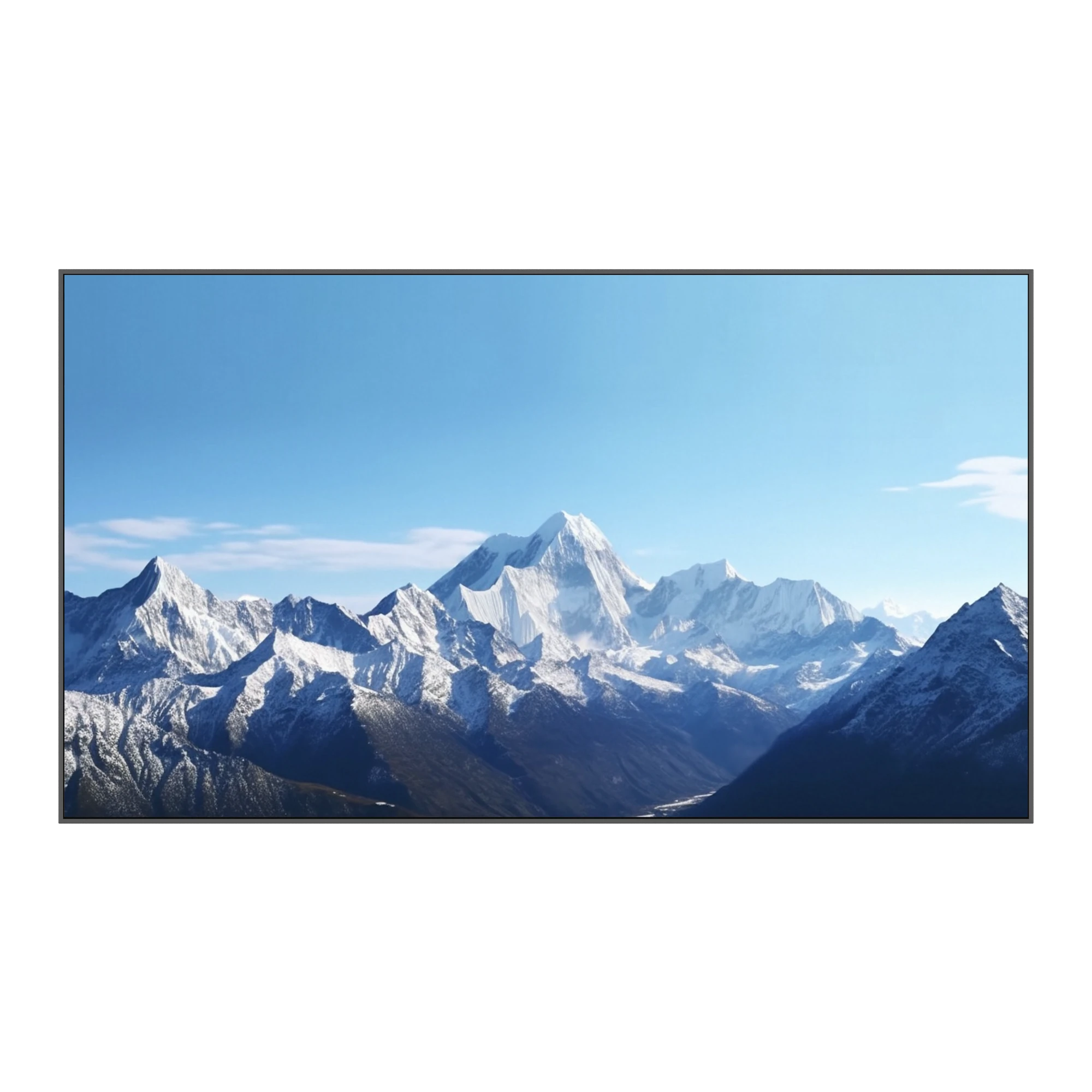

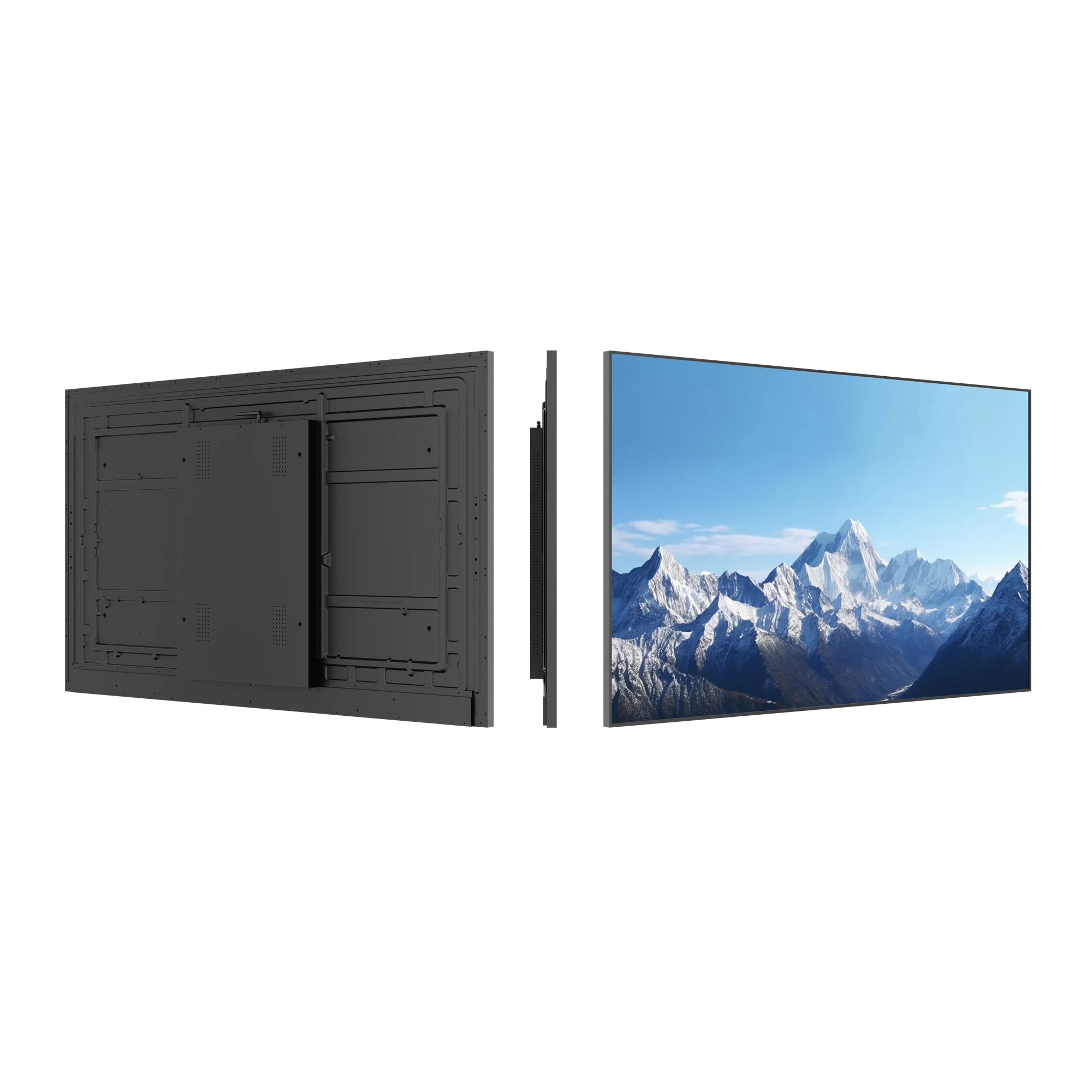

65-inch Q6

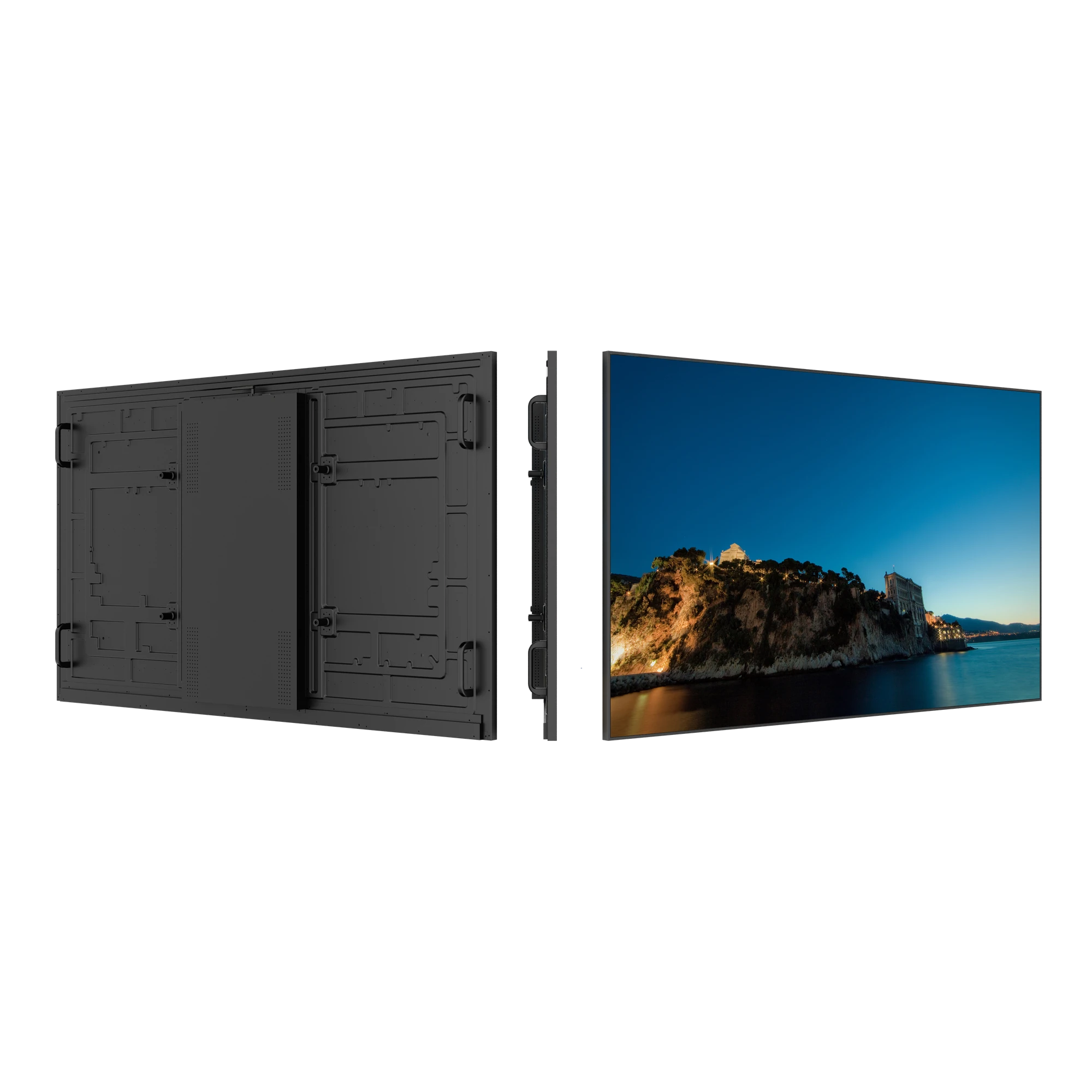

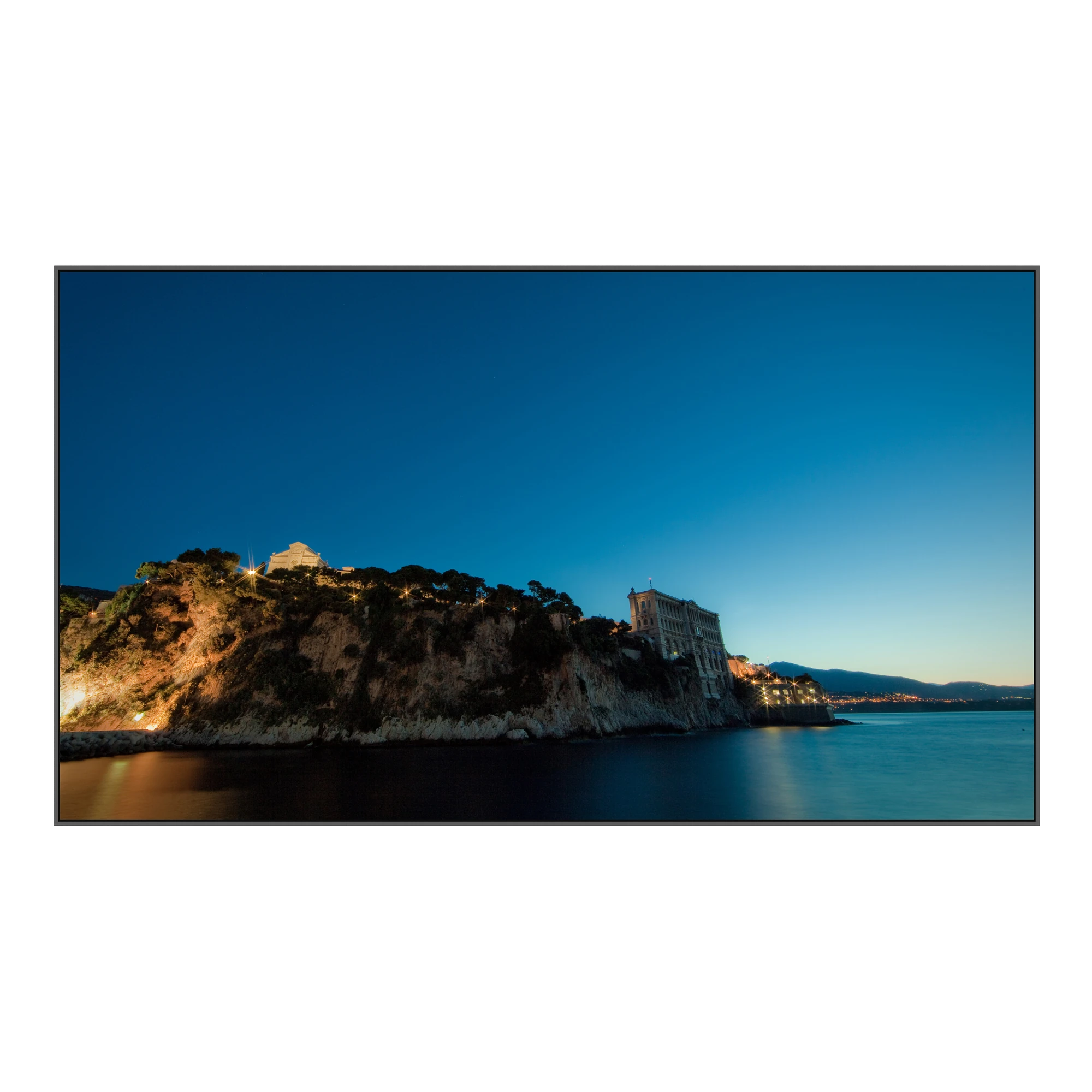

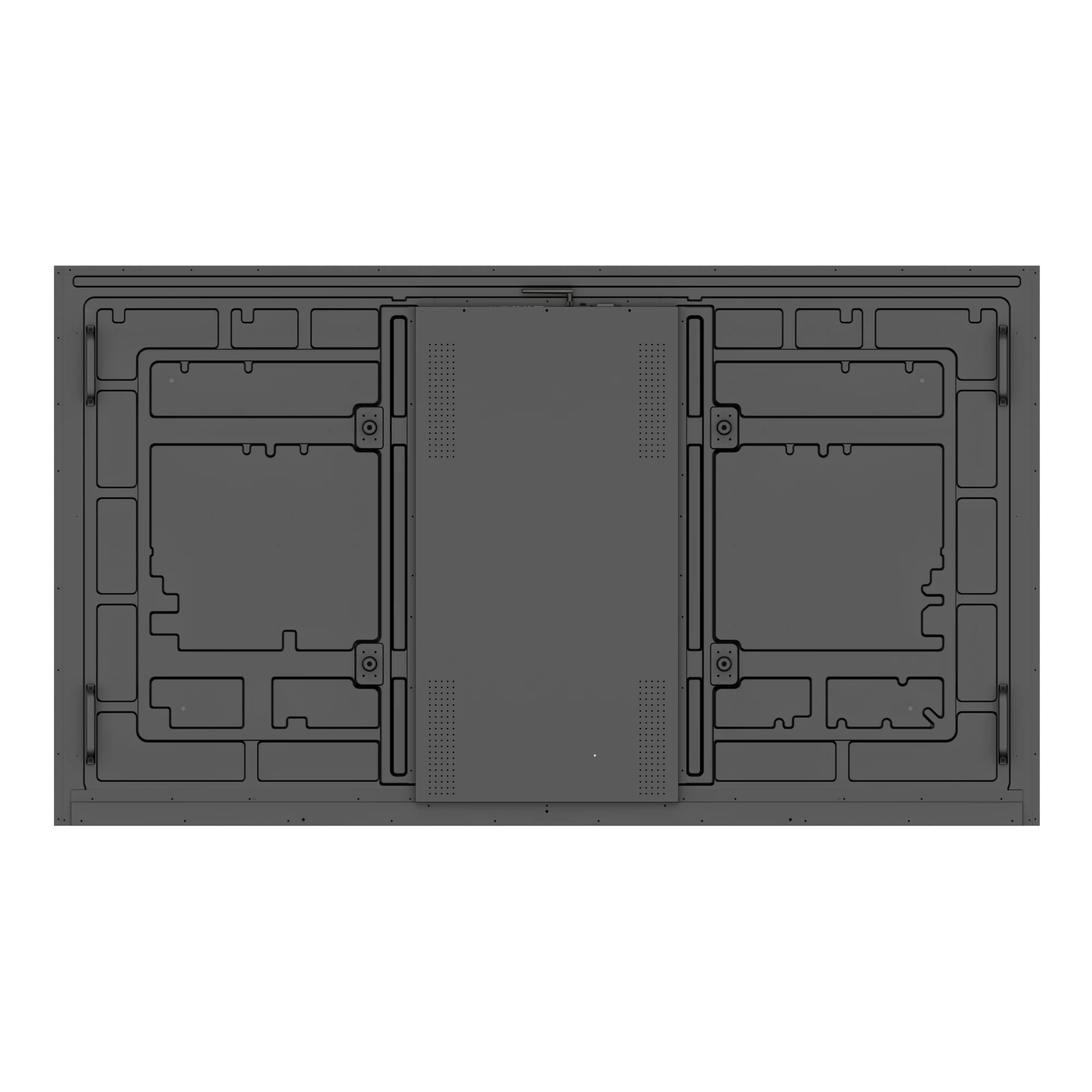

75-inch Q6

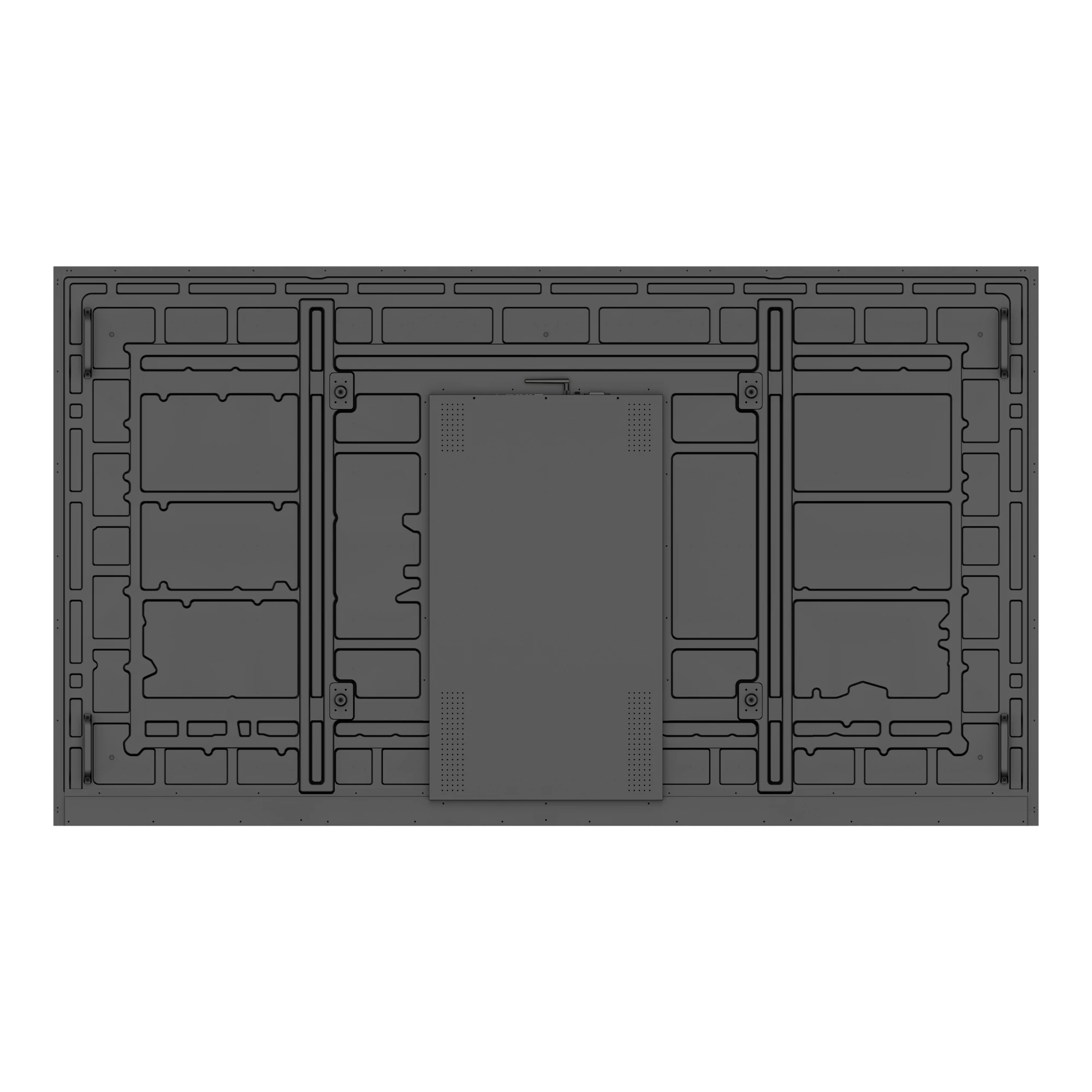

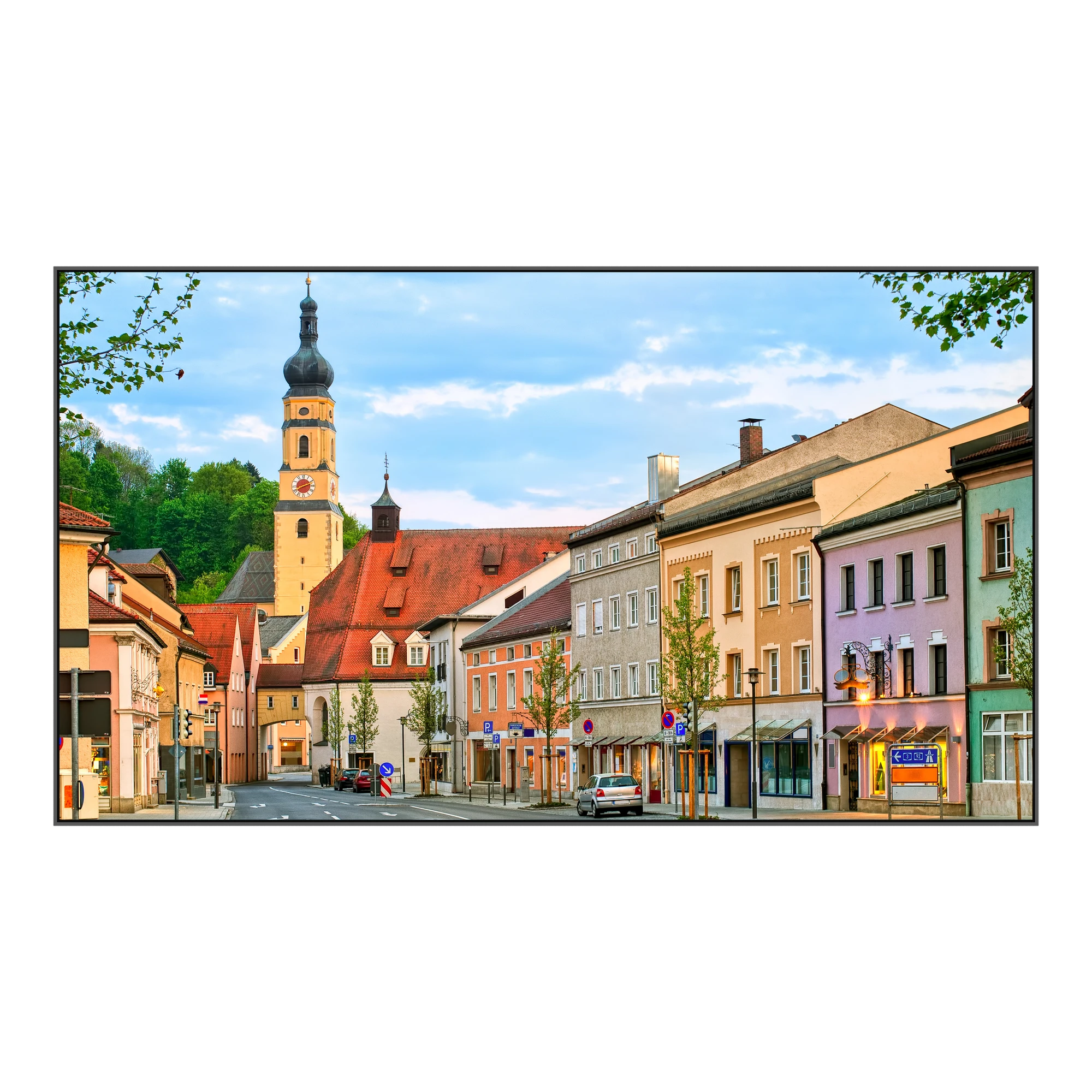

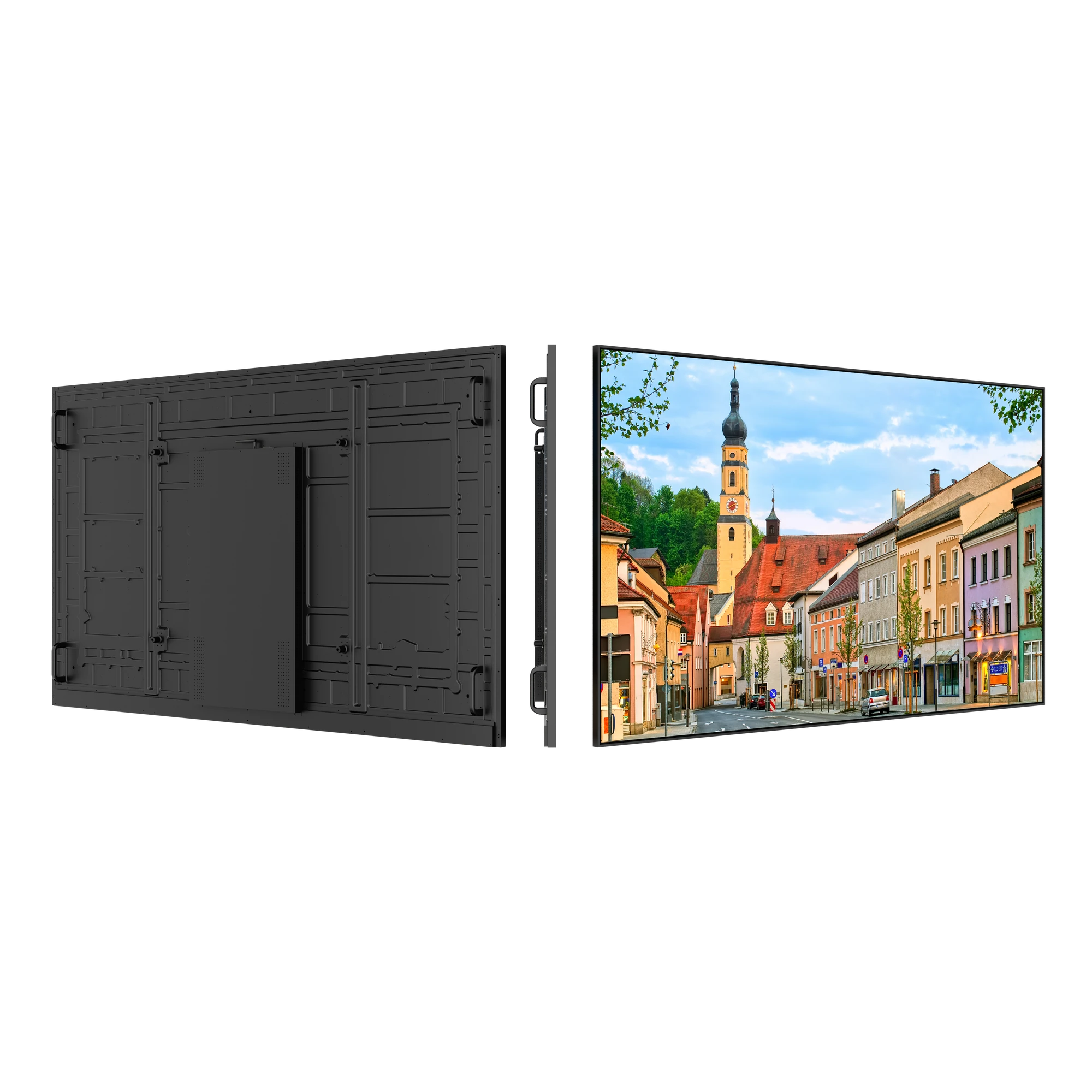

86-inch Q6
Downloads
Q6 brochures & technical drawings.
Download the English brochure, complete specification workbook or the dimension drawing for each screen size.
Q6 project support
Configure the right Q6 brightness and size.
Send your application, target size, ambient light conditions and quantity. We will confirm panel availability, lead time, packaging and custom options.
